import torchvision.transforms as transforms
from PIL import Image
import matplotlib.pyplot as plt
import torch

# 加载图像
img_path = 'cat.png'  # 替换为你的图像路径
img = Image.open(img_path)

# 定义各个增广函数
def plot_transformed_images(original_img, transform, title):
    """
    对给定的图像应用变换并绘制原始和变换后的图像。
    :param original_img: 原始图像
    :param transform: 要应用的变换
    :param title: 变换的名称（用于图表标题）
    """
    fig, axs = plt.subplots(1, 2, figsize=(10, 5))
    axs[0].imshow(original_img)
    axs[0].set_title('Original Image')
    axs[0].axis('off')

    transformed_img = transform(original_img)
    axs[1].imshow(transformed_img)
    axs[1].set_title(title)
    axs[1].axis('off')

    plt.show()

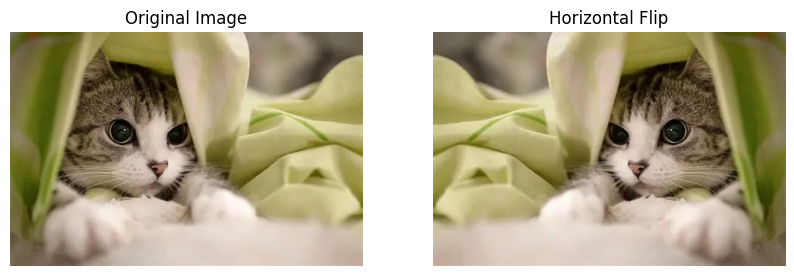

# 左右翻转
transform_hflip = transforms.RandomHorizontalFlip(p=1)  # p=1 表示总是翻转
plot_transformed_images(img, transform_hflip, "Horizontal Flip")

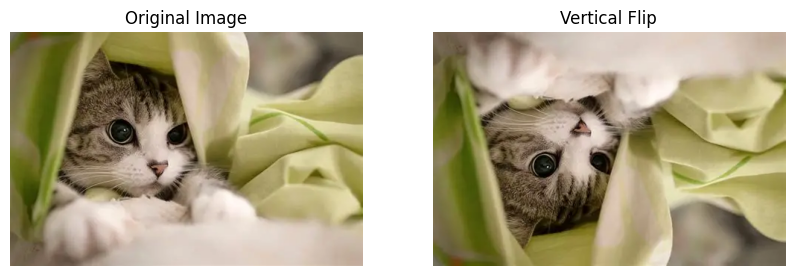

# 上下翻转
transform_vflip = transforms.RandomVerticalFlip(p=1)  # p=1 表示总是翻转
plot_transformed_images(img, transform_vflip, "Vertical Flip")

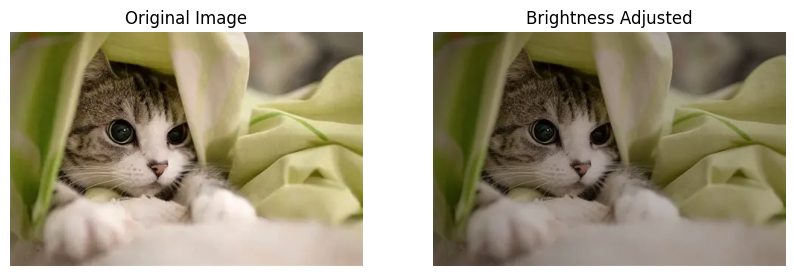

# 颜色调整 - 亮度
transform_brightness = transforms.ColorJitter(brightness=1.5, contrast=0, saturation=0, hue=0)
plot_transformed_images(img, transform_brightness, "Brightness Adjusted")

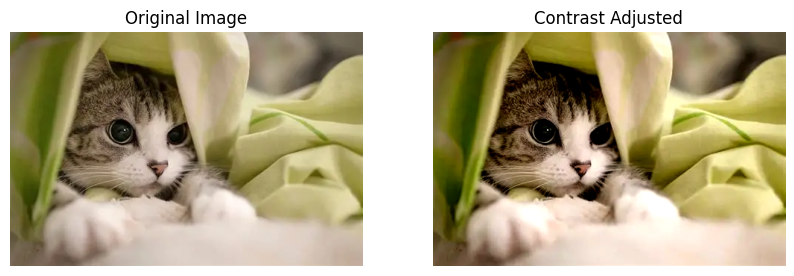

# 颜色调整 - 对比度
transform_contrast = transforms.ColorJitter(brightness=0, contrast=1.5, saturation=0, hue=0)
plot_transformed_images(img, transform_contrast, "Contrast Adjusted")

# 颜色调整 - 饱和度
transform_saturation = transforms.ColorJitter(brightness=0, contrast=0, saturation=1.5, hue=0)
plot_transformed_images(img, transform_saturation, "Saturation Adjusted")

# 颜色调整 - 色调
transform_hue = transforms.ColorJitter(brightness=0, contrast=0, saturation=0, hue=0.1)
plot_transformed_images(img, transform_hue, "Hue Adjusted")

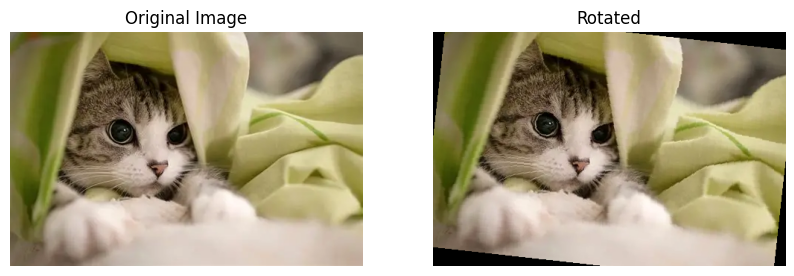

# 旋转
transform_rotate = transforms.RandomRotation(degrees=45)  # 旋转角度范围为 [-45, 45]
plot_transformed_images(img, transform_rotate, "Rotated")

# ---------------------------------------------------------

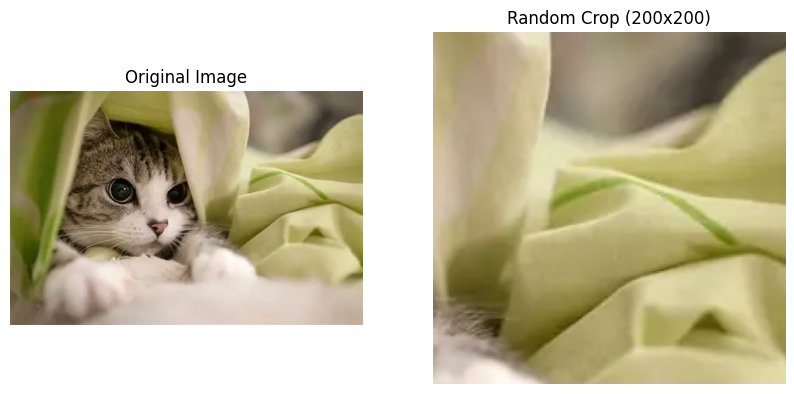

# 1. 随机裁剪 (Random Crop)
# 从图像中随机裁剪出指定大小的区域，常用于让模型关注局部特征
# ---------------------------------------------------------
transform_random_crop = transforms.RandomCrop(size=(200, 200))
# 注意：如果原图小于200x200，需要先用 Pad 或 Resize 处理，这里假设原图足够大
plot_transformed_images(img, transform_random_crop, "Random Crop (200x200)")

# ---------------------------------------------------------

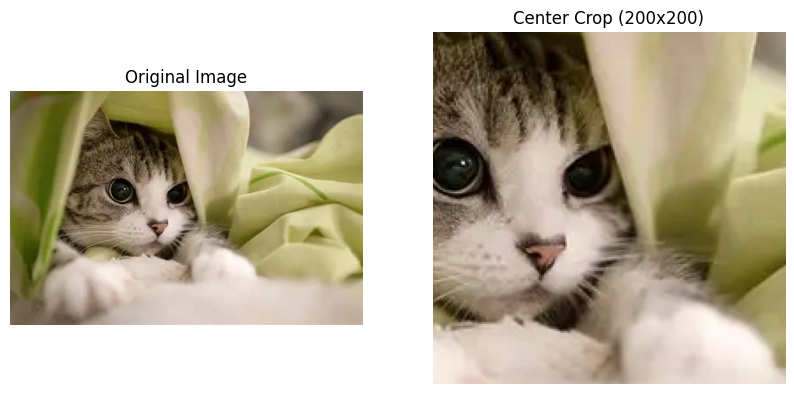

# 2. 中心裁剪 (Center Crop)
# 从图像中心裁剪出指定大小，常用于测试阶段或去除边缘无关信息
# ---------------------------------------------------------
transform_center_crop = transforms.CenterCrop(size=(200, 200))
plot_transformed_images(img, transform_center_crop, "Center Crop (200x200)")

# ---------------------------------------------------------

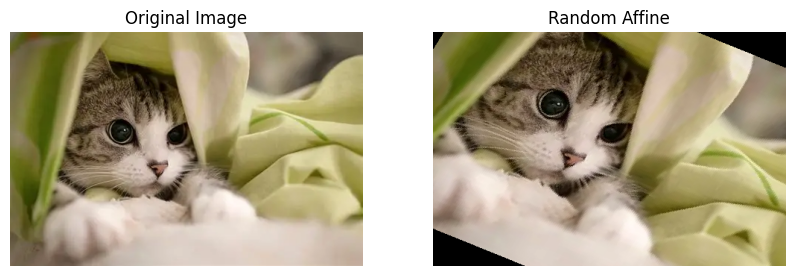

# 3. 随机仿射变换 (Random Affine)
# 包含旋转、平移、缩放和剪切的组合变换，模拟更复杂的视角变化
# degrees: 旋转角度范围
# translate: 平移比例 (宽, 高)
# scale: 缩放比例范围
# shear: 剪切角度范围
# ---------------------------------------------------------
transform_affine = transforms.RandomAffine(
    degrees=30,
    translate=(0.1, 0.1),
    scale=(0.8, 1.2),
    shear=10
)
plot_transformed_images(img, transform_affine, "Random Affine")

# ---------------------------------------------------------

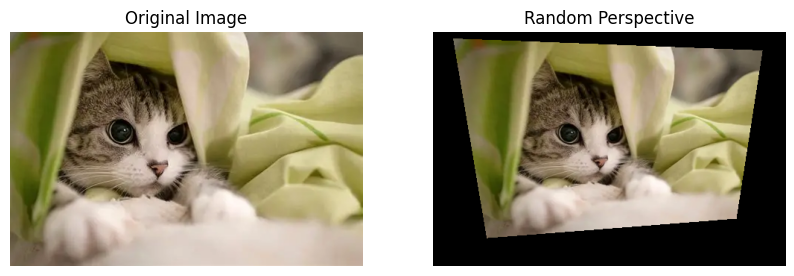

# 4. 随机透视变换 (Random Perspective)
# 模拟透视变形，让图像看起来像是从不同角度拍摄的平面物体
# distortion_scale: 控制变形程度 (0-1)
# ---------------------------------------------------------
transform_perspective = transforms.RandomPerspective(distortion_scale=0.5, p=1.0)
plot_transformed_images(img, transform_perspective, "Random Perspective")

# ---------------------------------------------------------

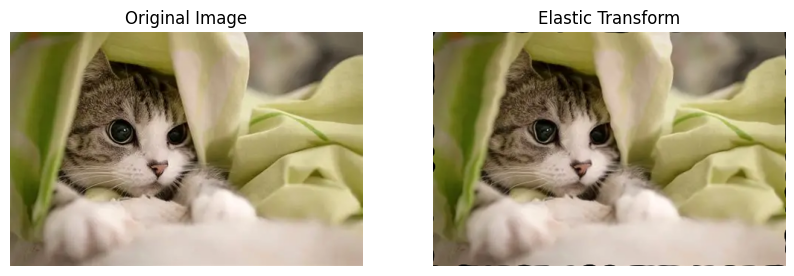

# 5. 弹性形变 (Elastic Transform) - 需较新版本 torchvision
# 模拟局部非线性变形，常用于医学图像或增加纹理多样性
# alpha: 变形强度
# sigma: 高斯核标准差，控制平滑度
# ---------------------------------------------------------
try:
    transform_elastic = transforms.ElasticTransform(alpha=50.0, sigma=5.0)
    plot_transformed_images(img, transform_elastic, "Elastic Transform")
except AttributeError:
    print("当前 torchvision 版本可能不支持 ElasticTransform，请升级库。")

# ---------------------------------------------------------
# 6. 高斯模糊 (Gaussian Blur)
# 模拟相机失焦或运动模糊，提高模型对模糊图像的鲁棒性
# kernel_size: 模糊核大小 (必须是奇数或序列)
# sigma: 标准差范围
# ---------------------------------------------------------
transform_blur = transforms.GaussianBlur(kernel_size=(5, 9), sigma=(0.1, 2.0))
plot_transformed_images(img, transform_blur, "Gaussian Blur")

# ---------------------------------------------------------
# 7. 随机灰度化 (Random Grayscale)
# 以一定概率将图像转换为灰度图，迫使模型不依赖颜色特征
# p: 转换为灰度的概率
# ---------------------------------------------------------
transform_grayscale = transforms.RandomGrayscale(p=1.0) # p=1 强制变灰度
plot_transformed_images(img, transform_grayscale, "Random Grayscale")

# ---------------------------------------------------------

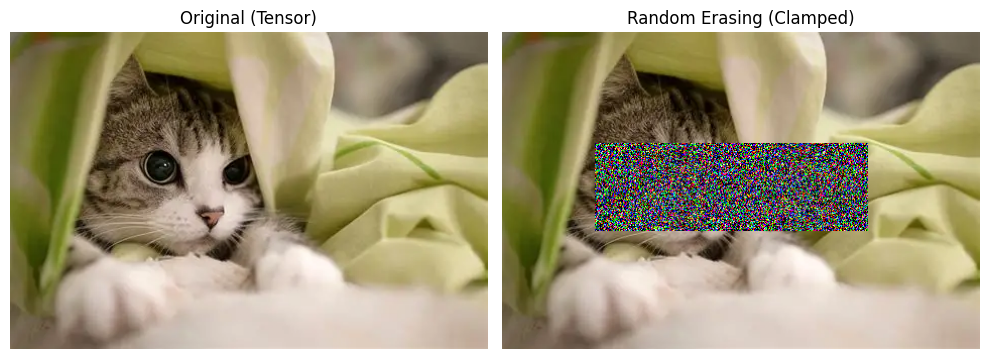

# 8. 随机擦除 (Random Erasing) - 修复警告版本
# ---------------------------------------------------------
transform_to_tensor = transforms.ToTensor()
tensor_img = transform_to_tensor(img)

transform_erasing = transforms.RandomErasing(p=1.0, scale=(0.02, 0.33), ratio=(0.3, 3.3), value='random')
erased_tensor = transform_erasing(tensor_img)

# 【关键修复步骤】
# 1. 使用 clamp 确保数据严格在 [0, 1] 之间
erased_tensor_clamped = torch.clamp(erased_tensor, 0.0, 1.0)

# 2. 将 Tensor (C, H, W) 转换为 numpy (H, W, C) 供 matplotlib 使用
# permute(1, 2, 0) 改变维度顺序
original_np = tensor_img.permute(1, 2, 0).numpy()
erased_np = erased_tensor_clamped.permute(1, 2, 0).numpy()

# 绘制 Random Erasing
fig, axs = plt.subplots(1, 2, figsize=(10, 5))
axs[0].imshow(original_np)
axs[0].set_title('Original (Tensor)')
axs[0].axis('off')

axs[1].imshow(erased_np)
axs[1].set_title('Random Erasing (Clamped)')
axs[1].axis('off')

plt.tight_layout()
plt.show()

# ---------------------------------------------------------

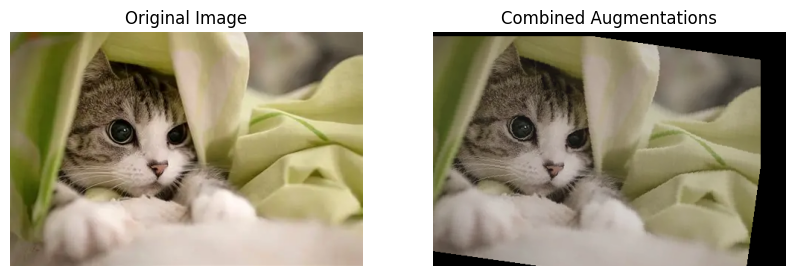

# 9. 组合变换 (Compose) - 实际训练中的常用方式
# 将多个变换串联在一起，一次性应用
# ---------------------------------------------------------
combined_transform = transforms.Compose([
    transforms.RandomHorizontalFlip(p=0.5),
    transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2),
    transforms.RandomRotation(degrees=15),
    transforms.RandomAffine(degrees=0, translate=(0.1, 0.1)),
])
plot_transformed_images(img, combined_transform, "Combined Augmentations")
